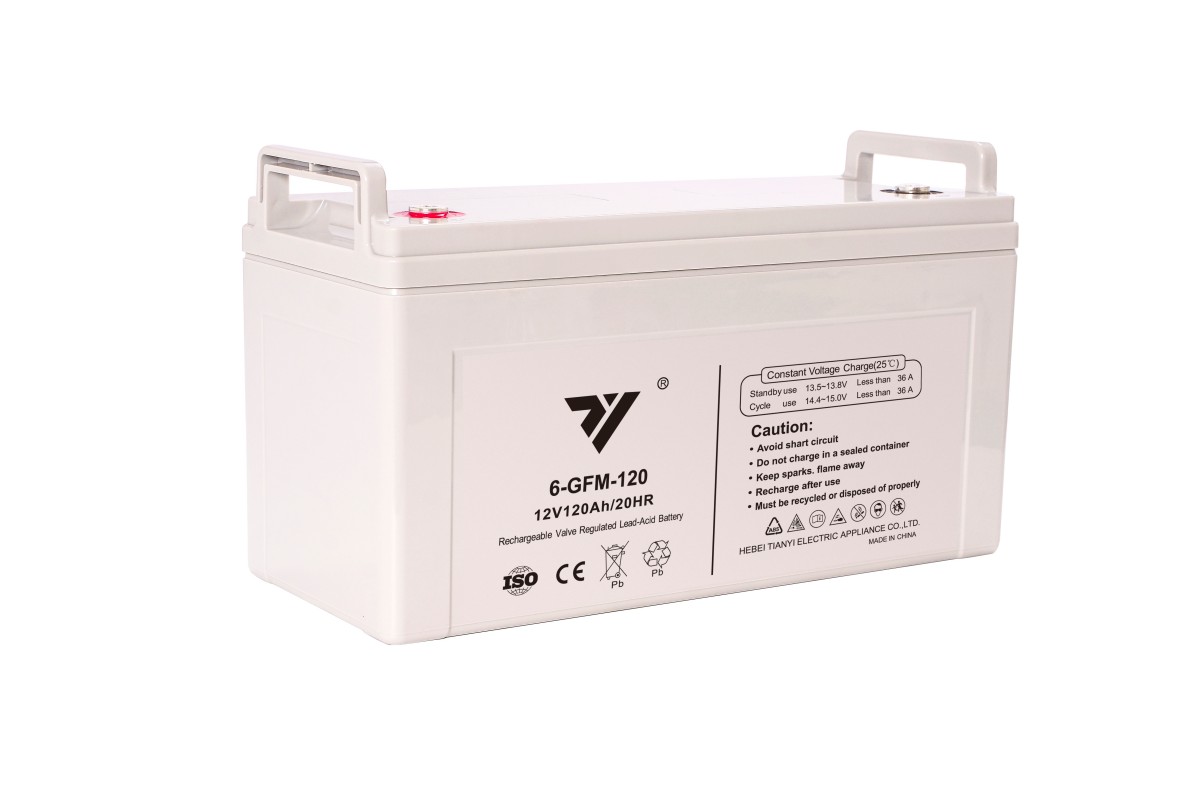

CN 12V120Ah

Energy storage batteries are devices that can store electrical energy and release it when needed. They play a vital role in modern energy systems. These battery systems are widely used in various fields, including but not limited to the integration of renewable energy, the improvement of grid stability, and emergency backup power supplies.

CN series

Application area

* Communication base stations, UPS (Uninterruptible Power Supplies)

* High-temperature base stations without air conditioning and with large temperature differences between winter and summer.

* Wind-solar energy storage communication base stations where power outages are very frequent or there is no utility power.

* Solar/wind off-grid energy storage systems.

* Solar/wind street lamps.

Get a quote

Product characteristics

* High-tin multi-element alloy grids and special lead paste formulations enhance the corrosion resistance of the grids.

* Nano-silica gel electrolyte solves the problem of electrolyte stratification and extends the cycle life of the battery.

* With a large heat capacity, it reduces the risk of thermal runaway, is less likely to dry out, and can be used in relatively harsh environments.

* It has a high gas recombination efficiency and less acid mist leakage.

* It has a relatively strong ability to recover from deep discharges.

* It has a low self-discharge rate and a long transportation and storage period.

* High-strength ABS shells offer higher safety during use.

Product model

Battery model list
Series model	Reference size(±3mm)				Terminal
	Long	Wide	High	Total height
	（mm)	(mm)	(mm)	(mm)
12V100Ah	330	173	216	222	M8
12V120Ah	406	174	209	237	M8
12V150Ah	484	170	240	240	M8
12V200Ah	521	238	218	223	M8
12V250Ah	520	267	220	225	M8
Product implementation standard GB/T 19639.1-2014 general valve-controlled lead-acid battery Product implementation standard GB/T 19638.1-2014 Fixed valve-controlled lead-acid battery Battery terminal type can be freely changed according to customer requirements
