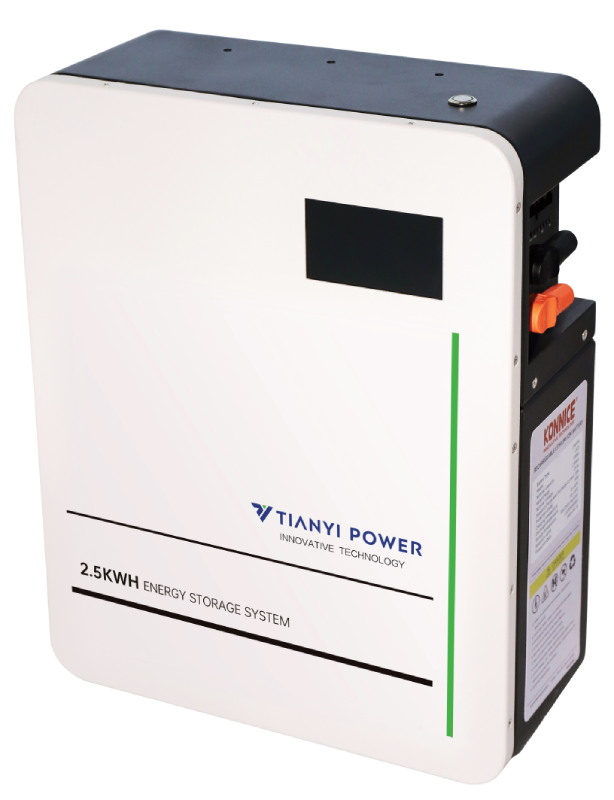

TY-LE25
Residential Energy Storage Lithium-ion Battery
Li-ion series
Application area
Get a quote
Related productsProduct characteristics

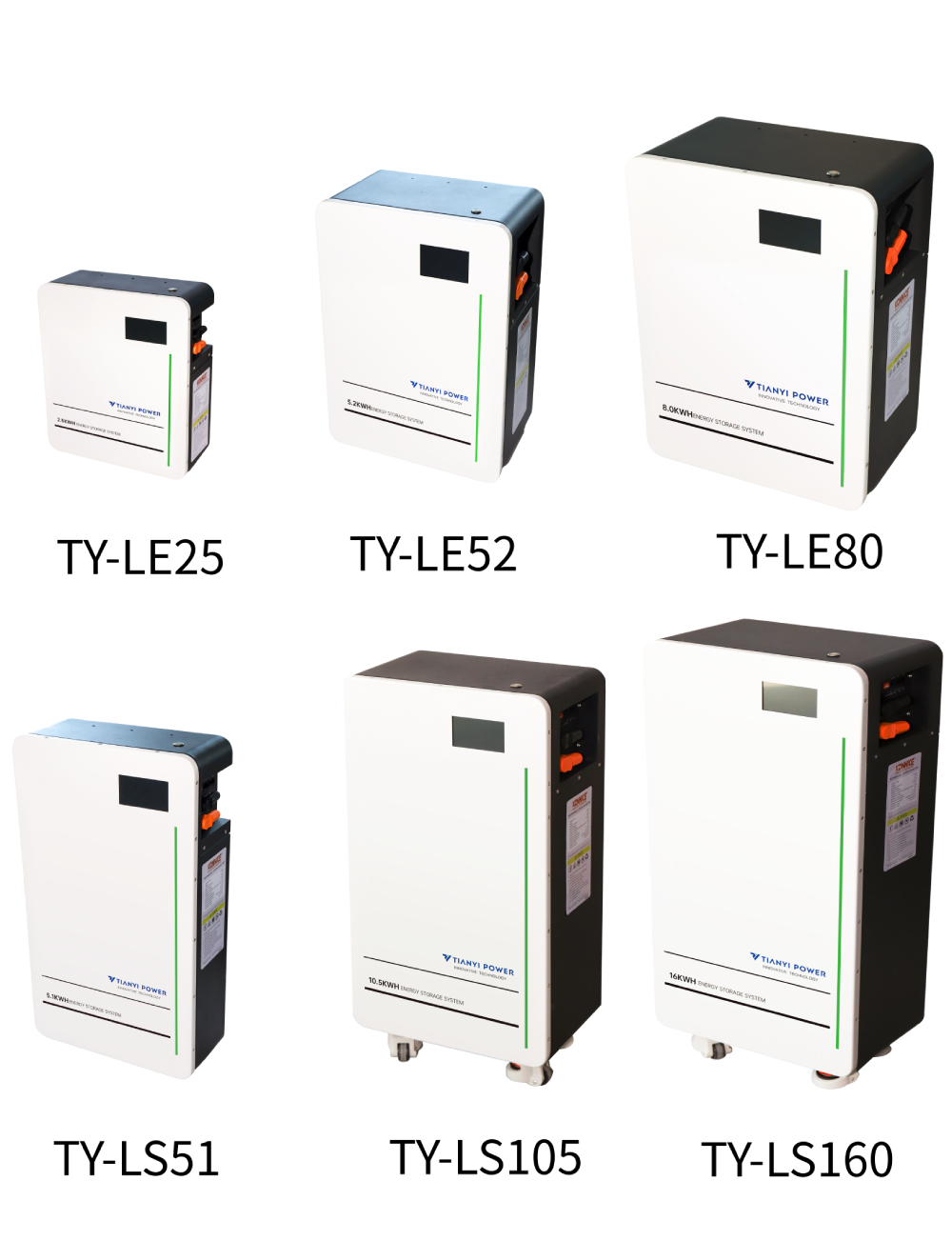

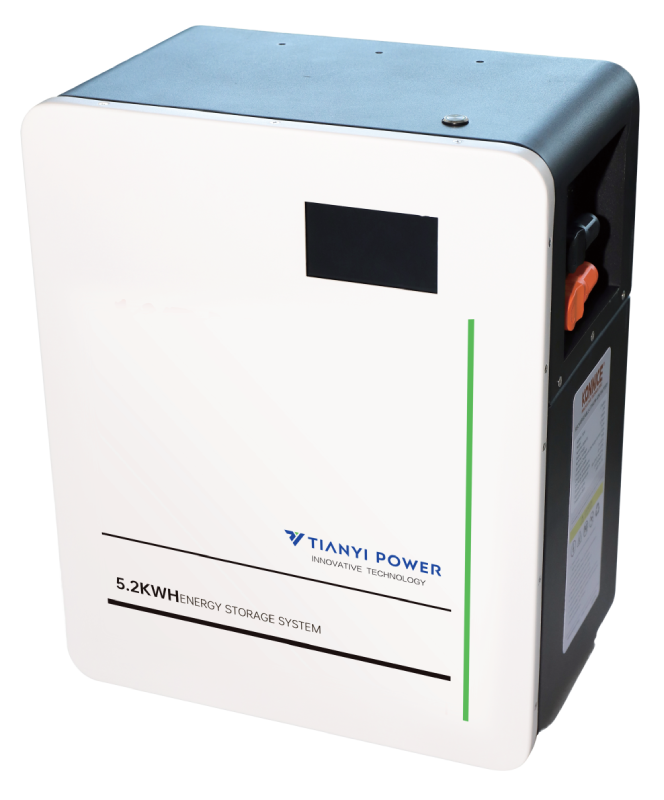

| Specifications | TY-LE25 | TY-LE52 | TY-LE80 | TY-LS51 | TY-LS105 | TY-LS160 |
|---|---|---|---|---|---|---|
| Rated Capacity | 100Ah | 206Ah | 314Ah | 100Ah | 206Ah | 314Ah |
| Nominal Voltage | 25.6V | 25.6V | 25.6V | 51.2V | 51.2V | 51.2V |
| Charge Voltage | 29.2V | 29.2V | 29.2V | 58.4V | 58.4V | 58.4V |
| Discharge Cut-off Voltage | 20V | 20V | 20V | 40V | 40V | 40V |
| Energy | 2560Wh | 5273Wh | 8038Wh | 5120Wh | 10547Wh | 16076Wh |
| Standard Discharge | 50A | 100A | 100A | 50A | 100A | 100A |
| Maximum Continuous Charge Current | 50A | 100A | 100A | 50A | 100A | 100A |
| Maximum Continuous Discharge Current | 100A | 200A | 200A | 100A | 200A | 200A |
| Operation Temperature Range | Charge: 0~45°C Discharge: -20~60°C | Charge: 0~45°C Discharge: -20~60°C | Charge: 0~45°C Discharge: -20~60°C | Charge: 0~45°C Discharge: -20~60°C | Charge: 0~45°C Discharge: -20~60°C | Charge: 0~45°C Discharge: -20~60°C |
| Storage T/H Range | -10~45°C / 60±25% | -10~45°C / 60±25% | -10~45°C / 60±25% | -10~45°C / 60±25% | -10~45°C / 60±25% | -10~45°C / 60±25% |
| Depth of Discharge and Cycle Life | DOD80%/25°C /0.5C/4000 Cycles, SOH≥70% | DOD80%/25°C /0.5C/4000 Cycles, SOH≥70% | DOD80%/25°C /0.5C/4000 Cycles, SOH≥70% | DOD80%/25°C /0.5C/4000 Cycles, SOH≥70% | DOD80%/25°C /0.5C/4000 Cycles, SOH≥70% | DOD80%/25°C /0.5C/4000 Cycles, SOH≥70% |
| Cooling Method | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling |
| Mounting Method | Floor-standing or wall-mounted | Floor-standing or wall-mounted | Floor-standing or wall-mounted | Floor-standing or wall-mounted | Floor-standing | Floor-standing |
| Protection Level | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 |
| Communication Methods | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN |
| Maximum Parallel Quantity | 15 | 15 | 15 | 15 | 15 | 15 |
