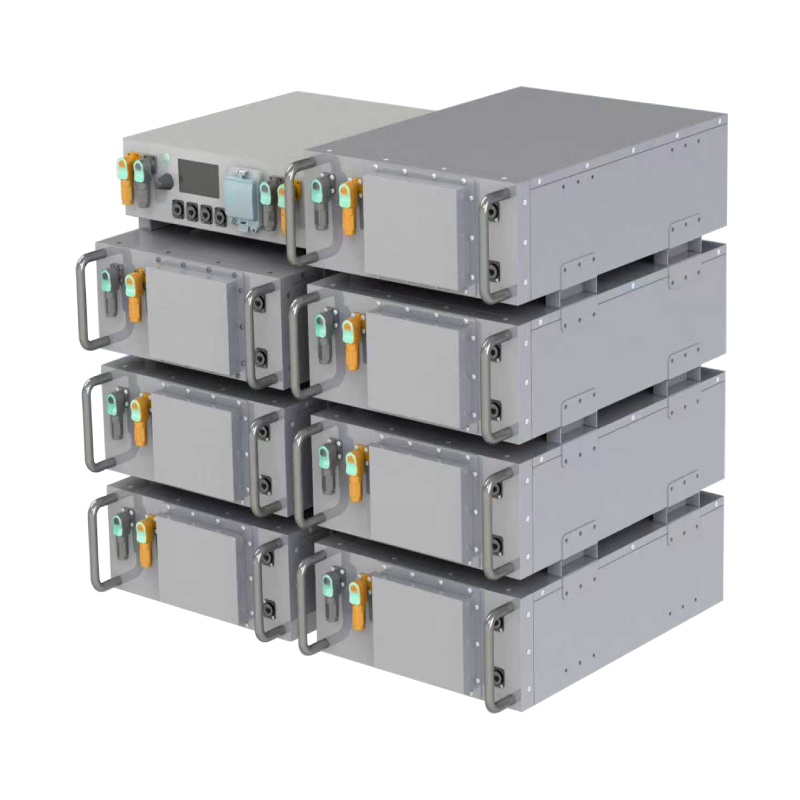

TY-HES150
High-Voltage Energy Storage Lithium-ion Battery
Li-ion series
Application area
Get a quote
Related productsProduct characteristics
| Specifications | TY-HES150 | ||
|---|---|---|---|
| Material Category | 磷酸铁锂(LFP) | standard Charging Current | 60A |
| Rated Voltage | 204.8V-768V | Maximum Charging Current | 60A |
| Rated Capacity | 150Ah | Operating Temperature Range | 0-55°C |
| Rated Energy | 30.72KWh-115.2KWh | Cooling Method | Natural cooling |
| Series&Parallel Connection Mode | 1P/16S-240S | Protection Grade | ip20 |
| standard Discharge Current | 120A | Communication Mode | can/wifi/rs485 |
| Maximum Continuous Discharge Current | 120A | Single pack Dimensions | 675*444*183 (mm) |
| Allowable Pulse Discharge Current | 120A | Typical System Dimensions | 675*444*1195(mm) |
