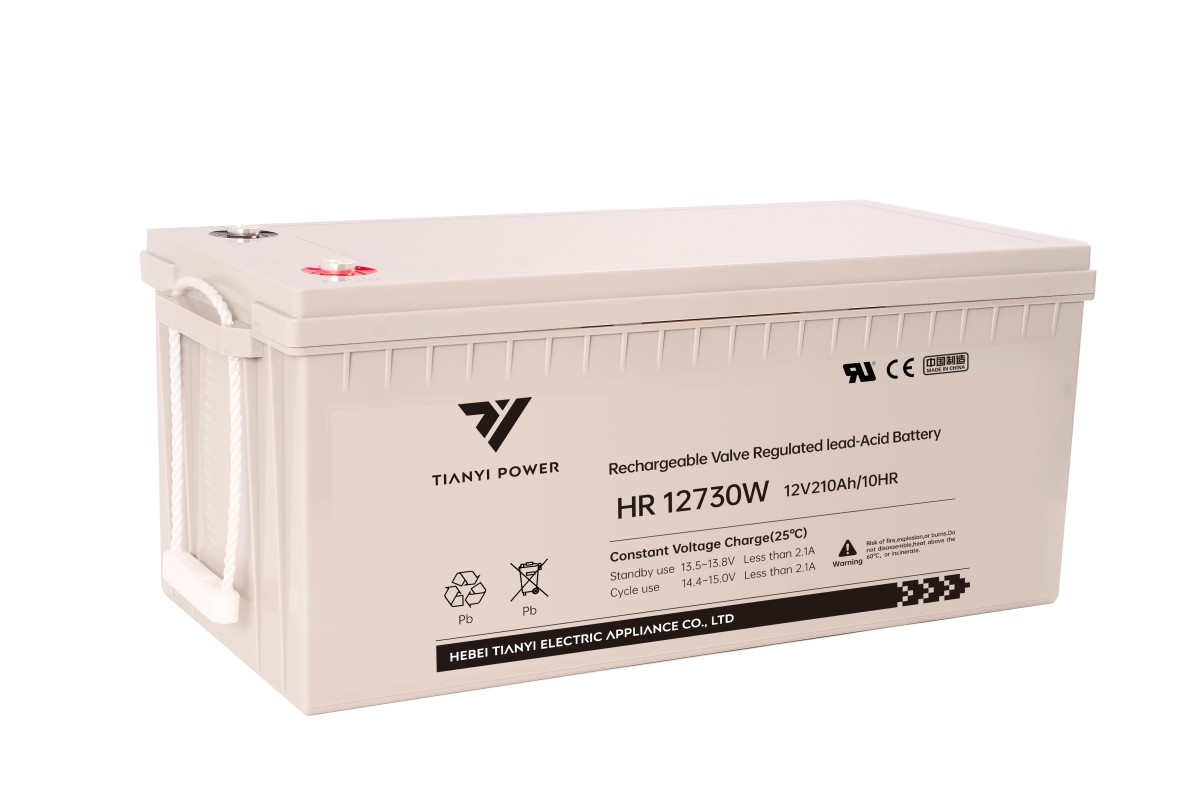

HR 12730W

* Capacity range: 21W to 510W/cell(25°C)* Voltage range: 12V* Low self-discharge rate: 25°C, less than 2% per month* High current discharge performance over 2C is superior* High sealing reaction rate:

HR series

Application area

* IDC (Internet Data Center) Data Centers
* Uninterruptible Power Supply Systems (UPS)

Product characteristics

* High-tin multi-element alloy grids and special lead paste formulations enhance the corrosion resistance of the grids, extend the battery life and improve the high-current discharge capability.

* 3D-structured grids have a larger surface area, which is conducive to the optimization design for high-current conduction and the adhesion of active materials.

* CCDR grids (stamped grids) are characterized by high density, strong corrosion resistance and good consistency.

* Advanced casting welding and through-the-wall welding heat-sealing processes result in low internal resistance and high power density.

* During a 15-minute high-power discharge, it can output 15 - 25% more than ordinary AGM batteries, reducing the number or specifications of batteries required for configuration and lowering the initial investment.

* High-strength ABS shells offer higher safety during use.


Product model

Battery model list
Series modelReference size(mm)Terminal
LongWideHighTotal height
(mm)
(mm)(mm)(mm)
HR 1228W 12V8.5Ah1516596101F1/F2
HR 1233W 12V9Ah1516596101F1/F2
HR 1235W 12V9.3Ah1516596101F1/F2
HR 1237W 12V9.5Ah1516596101F1/F2
HR 1255W 12V14Ah1519995100F1/F2/M5
HR 12112W 12V30Ah165126173173M6
HR 12165W 12V42Ah198167173173M6
HR 12200W 12V58Ah230139210215M6
HR 12260W 12V73Ah348168177177M8
HR 12275W 12V75Ah348168177177M8
HR 12460W 12V128Ah406173208233M8
HR 12700W 12V200Ah522240221226M8
HR 12730W 12V210Ah522240221226M8
HR 12760W 12V210Ah522240221226M8
HR 12800W 12V220Ah522240221226M8
HR 12870W 12V260Ah522268220225M8


Curve picture

01.jpg     02.jpg

03.jpg     04.jpg

05.jpg     06.jpg
